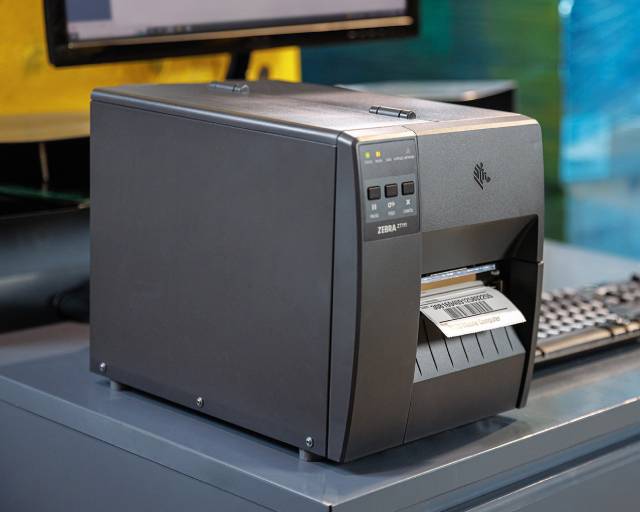

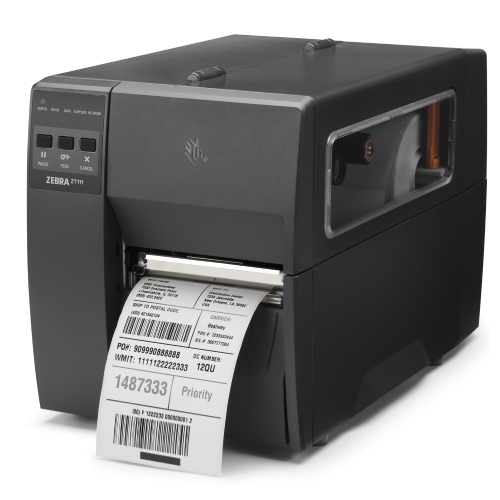

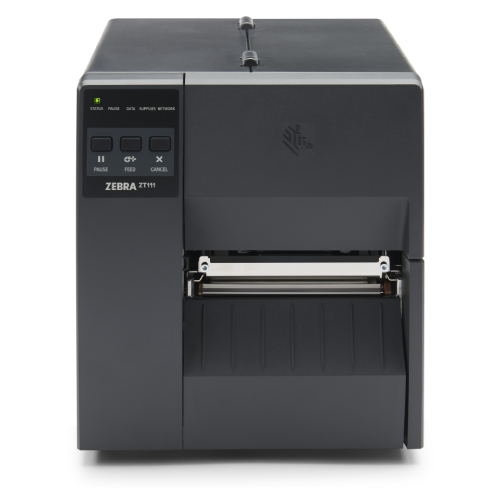

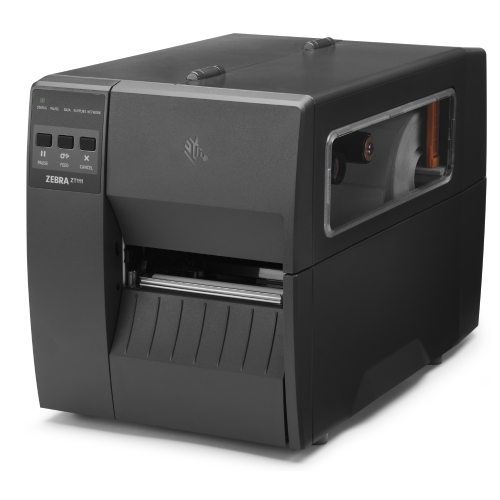

Zebra industrial printer ZT111
Entry-Level Printing
The ZT111 is designed to meet both your light-industrial printing needs and a limited budget. It offers thermal transfer and direct thermal printing to match your 4-inch print width applications. It's simple to use with an intuitive, three-button interface and allows you to see status at a glance with five LED icons. Add media handling and connectivity options onsite on your schedule.
Budget can be brilliant, too
When your labeling needs demand more than a desktop printer can deliver and you’re looking to add an industrial printer, you shouldn’t have to compromise between budget and quality. With Zebra’s ZT111, you don’t have to. Get just the right features you need at the right price to match your needs – today and tomorrow. Stay productive with fast print speeds, built-in intelligence and time-saving tools to make work easier. And, futureproof your investment with upgradeability.
Make the smart choice with the ZT111, the entry-level printer that’s easy on your budget and gives you more. More uptime, more processing power, more tools and more years of use.
The Budget Printer that Delivers More
Greater Functionality at a Fraction of the Cost
Get more value out of your printer with built-in Zebra-only software tools that make it easy to integrate and operate. From setup utilities to built-in security settings to ongoing visibility into your supplies usage, Zebra gives you more without the added cost.
Save Time and Effort for IT
Your IT team is busy enough. The ZT111 makes it simple. It’s easy to integrate into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code. Make training simple with the easy-to-use 3-button interface with 5 status icons.
Print More for Longer
Eliminate replacing printers that don’t last. Get the enduring quality you expect and deserve from Zebra at a price that matches your budget, knowing this printer will outperform others for years to come. Be confident knowing you’re backed by Zebra, the #1 leader in barcode printing.
Maximize Your Workspace
Save workspace with the ZT111’s small footprint, compact dimensions, and bi-fold door that reduces the height needed to open it.
The Right Capabilities to Move Business Forward
Innovative Processing to Power Future Printing
The ZT111 includes an all-new architecture to process more jobs at once and evolve with advancing technology. So, it’s a smart choice now and later.
Onboard analytics and printhead element out detection help you plan maintenance in advance. And, the easy tool-less platen and print head removal makes the job easy.
The Key Features You Want
Want 300 dpi high-resolution printing? You’ve got it, and more. With fast print speeds up to 10 ips at 203 dpi, intuitive media loading with color-coded touch points and adjustable media sensors, you can quickly print what you need without the hassle.
Connect Your Way
Connecting your devices, printers and people is a critical factor to driving productivity. The ZT111 makes it easy with plenty of connectivity options to choose from like Serial and Ethernet. Need a USB Host port? It’s got that. You can even tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Or, add a second Ethernet port or 802.11ac Wi-Fi™.
Futureproof Your Investment
New to industrial printing? No worries. Save on large, upfront capital costs by purchasing just the features you need right now. With field-installable upgradeability options like wireless connectivity and media handling, your printer can adapt to your changing needs whenever you need it.
Built-in Security to Protect Your Data and Infrastructure
Smart Settings to Prevent Tampering
Security risks are real and costly. Endpoints are becoming popular targets, including networked thermal printers. Protect your ZT111 during start up with Secure Boot and prevent unwanted settings changes while in use with Protected Mode. When you’re ready to relocate or retire your ZT111, easily reset all user settings and remove user files with Simplified Printer Decommissioning. Protect your networks from costly cyber attacks with Zebra Secure Service Commands, part of PrintSecure.
Specifications
Standard Features
|
? Print methods: direct-thermal or thermal-transfer |
Physical Characteristics
| Dimensions |
ZT111 Closed: 17 in. L x 9.5 in. W x 11 in. H |
| Weight | ZT111: 17 lbs./7.7 kg |
|
*Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations. |
Printer Specifications
| Resolution |
203 dpi/8 dots per mm |
| Memory |
256 MB SDRAM memory |
| Maximum Print Width | 4.09 in./104 mm |
| Maximum Print Speed |
10 ips (200 dpi) |
| Media Sensors | Transmissive and reflective sensors |
| Maximum Print Length |
203 dpi: 157in./3988 mm |
Media Characteristics
| Minimum Label and Liner Length |
Tear mode: 0.7 in/18 mm |
| Media Width | 0.75 in./19.4 mm to 4.50 in./114 mm |
| Media Roll Size |
8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core |
| Media Thickness | 0.003 in./0.076 mm to 0.010 in./0.25 mm |
| Media Types | Continuous, die-cut, notch, black mark |
Ribbon Characteristics (Thermal-transfer option only)
| Standard Length | 1,476 ft./450 m |
| Width | 2 in./51 mm to 4.33 in./110 mm |
| Core | 1.0 in./25.4 mm |
Operating Characteristics
| Operating Temp. |
Thermal transfer: 40oF to 105oF/5o to 40oC |
| Storage/Transportation Temperature |
-40oF to 140oF/-40o to 60oC |
| Operating Humidity | 20% to 85% non-condensing |
| Storage Humidity | 5% to 85% non-condensing |
| Electrical |
Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz |
| Agency Approvals | IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS |
Print DNA™ Basic Software
|
This printer is supported by our Print DNA Basic suite of software capabilities to get your printer up and running quickly, deliver a dependable print experience and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. For more information, please visit |
Firmware
|
ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. |
Barcode Symbologies
|
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code |
Fonts and Graphics
|
7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM? Code Page 850 |
Options and Accessories
|
Communication |
Markets and Applications
Manufacturing
- Work-in-process
- Product ID/serial numbers
- Packaging labeling
- Receiving/put-away labeling
Transportation and Logistics
- Order picking/packing
- Shipping/receiving
- Cross-docking
- Compliance labeling
Healthcare
- Laboratory labeling
- Blood bank labeling
- Asset tracking
- Unit-dose labeling
- Pharmacy labeling
Retail
- Buy online pick up in store labeling
- Return tagging
- Price labeling
- Shipping labeling
