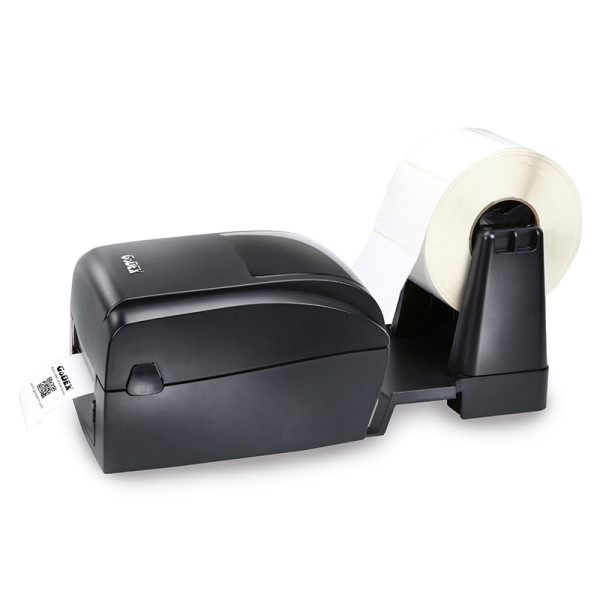

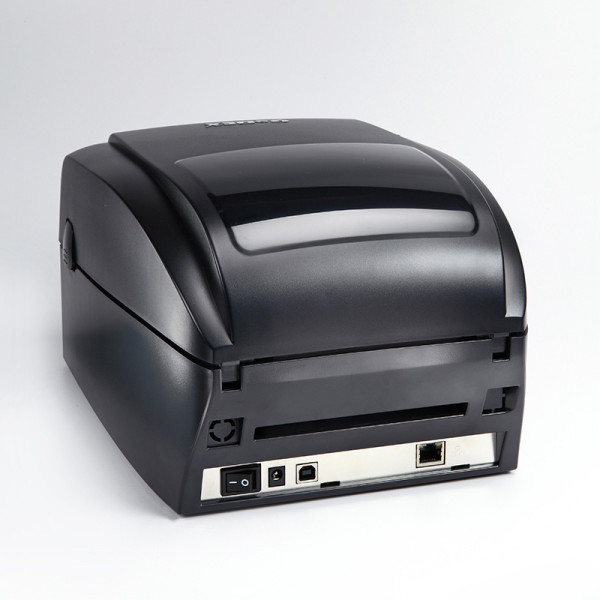

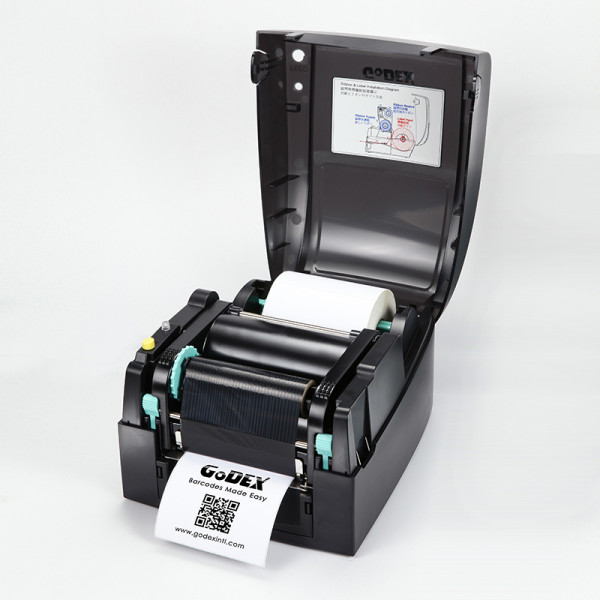

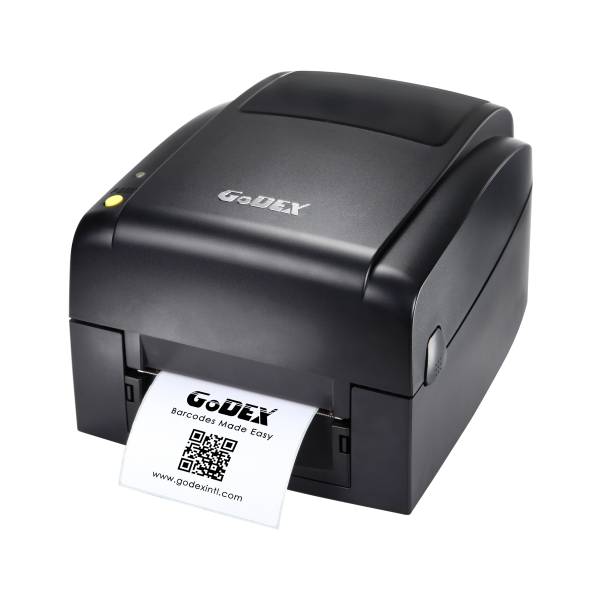

Godex desktop barcode printer EZ120
1/
GoDEX EZ120 is a Value-priced reliable desktop printer which is perfect for medium duty applications. With its highly stability and durability, EZ120 is still the best choice for most general applications. (EZ120 is a model of Godex EZ100 series)
EZ100 series offers robust mechanism and simple operation methods for printing retail, warehouses, logistic & transportation, government &
administration labels and tags.
- Sleek outlines and best choice for value.
- Supports 300 meter ribbon and 10 inch diameter label stand available for bulk printing.
- Dual sensors enable instant label / ribbon detection.
- Reliable structure and slick outline contributed sheer simplicity.
| Model | EZ120 |
|---|---|
| Print Method | Thermal Transfer/ Direct THermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 4 IPS (102 mm/s) |
| Print Width | 4.25" (108 mm) |
| Print Length | Min. 0.16" (4 mm) Max. 68" (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory Flash | 8 MB Flash (4 MB for user storage) |
| SDRAM | 16 MB SDRAM |
| Sensor Type | Adjustable reflective sensor @Fixed transmissive sensorss, central aligned |
| Media Types | Continuous form , gap labels ,black mark sensing, and punched hole ;label length set by auto sensing or programming |
| Width | 1" (25.4 mm ) Min. -4.64" (118 mm) Max |
| Thickness | 0.003" (0.06 mm) Min. -0.01" (.025 mm) Max. |
| Label Roll Diameter | Max. 5" (127 mm) |
| Core Diameter | 1" (25.4 mm), 1.5" (38.1 mm), 3" (76.2 mm) |
| Ribbon Types | Wax, Wax/ resin, resin |
| Length | 981' (300 m) |
| Width | 1.18" Min. -4.33" (30 mm - 110 mm) Max. |
| Ribbon Roll Diameter | 2.67" (68 mm) |
| Core Diameter | 1" (25.4 mm) |
| Printer Language | EZPL , GEPL, GZPL auto switch |
| Software Label Design software | GoLabel (for EZPL only) |
| Driver | MAC , Linux , Windows 2000 , XP , Vista , Windows 7 , 8.1 , and 10 Windows server 2003 & 2008 |
| DLL | Win CE, .NET, Android, Windows mobile, Windows 2000/ XP / VISTA / Windows 7 / Windows 8.1 |
| Resident Fonts Bitmap Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16x26 and OCR A & B Bitmap fonts 90° , 180°, 270°, rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions |
| TTF Fonts | TTF Fonts (Bold / Italic / Underline). 0°,90°, 180°, 270° rotatable |
| Download Fonts Bitmap Fonts | Bitmap fonts 90° , 180°, 270° rotatable, single characters 90° , 180°, 270° rotatable |
| Asian Fonts | 90° , 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions |
| TTF Fonts | TTF Fonts (Bold / Italic / Underline) 0°, 90° , 180°, 270° rotatable |
| Barcodes 1-D Barcodes | Code 39, Code 93, EAN-13, EAN 8/13 (with 2 &5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC 128, UCC/EAN -128 k-Mart, Random Weight, Postnet, ITF 14, China Postal Code ,HIBC, MSI, Plessy, Telepen, FIM, GS1 Databar, German Post Code, Planet 11 & 13 digit , Japanese Postnet, Standard 2 of 5,Industrial 2 of 5, Logmars, Code 11, ISBT-128, Code 32 |
| 2-D Barcodes | PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code Aztec code,Code 49,Codablock F, TLC 39 |
| Code Pages | CODEPAGE 437,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8 , UTF16BE , UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB Device (B-Type) |
| Control Panel | One Tri-color LED : Power (Green, Orange and Red) Function Key : FEED |
| Power | Auto switching 100-240V AC, 50-6Hz |
| Environment Operation Temperature | 41° F to 104°F (5°C to 40° C) |
| Storage Temperature | -4° F to 122° F(-20° C to 50°C ) |
| Humidity Operation | 30-85%, non-condensing. |
| Storage | 10-90%, non-condensing. |
| Agency Approvals | CE (EMC), FCC Class A, CB, CCC, UL, cUL |
| Dimension | |
| Length | 11.2" (285 mm) |
| Height | 6.8" (171 mm) |
| Width | 8.9" (226 mm) |
| Weight | 6 lbs (2.72 kg), excluding consumables |
| Options & Accessories | Cutter module (factory insatll) Label Dispensor module (factor install) External label roll holder for 10" (250 mm) O.D label rolls External label rewinder T10 |
